MQ9005S

MQ9005S

Isolated 18~75V input, 1/16-brick, single output 50W DC-DC Converter



Share: more
  • Product
  • Product Features
  • Applications

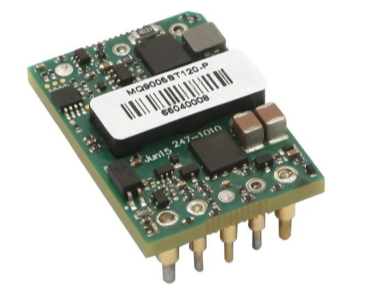

The MQ9005S Series Power Modules are isolated single output dc-dc converter that operates over a wide input voltage range of 18Vdc to 75Vdc and provide a precisely (1%) regulated dc output in standard 1/16-brick size. The module provides 12Vdc nominal output voltage rated for 4.1Adc output current, achieves 89% high efficiency at 24Vdc and 28Vdc input voltage application. Standard features include remote On/Off, remote sense, output voltage adjustment, overvoltage, overcurrent and over temperature protection.
