3~5.5Vdc input, 10A / 0.75~3.6V output, high efficiency 95%, SIP/SMT package, Non-isolated DC-DC converter

Share: more
  • Product
  • Product Features
  • Applications

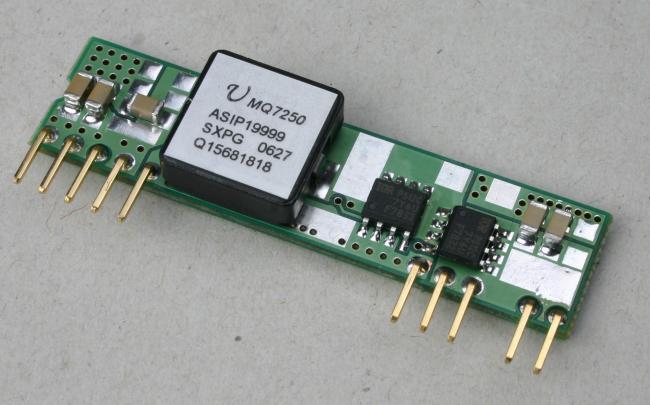

    The SuperTarzanTMMQ7250A Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3Vdc to 5.5Vdc, and provide a precisely (2%) regulated dc output with industry standard pin out. Such a module is suitable to application with 3.3V or 5V power supply bus. The modules have a maximum output currentrating of 10A at a typical full-load efficiency over 95%. Standard features include remote on/off with optional logic mode and trimmed output voltage, over-current protection, over-temperature protection. Option features include output voltage remote sense compensation.
