The MQ7280 Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3Vdc to 5.5Vdc, and provide a precisely (2%) regulated dc output with industry standard pin configuration. Such a module is suitable to application with 3V/5V power supply bus. The modules have a maximum output current rating of 30A at a typical full-load efficiency over 93%. Default features include remote on/off with positive or negative logic and output voltage adjustment, over-current protection, over-temperature protection.

Ø  Wide input & output voltage:

¨   MQ7280SIP/SMT03: 3.0~4.0V/0.75~2.5V

¨   MQ7280SIP/SMT05: 4.5~5.5V/0.75~3.63V

Ø  Output Current up to 30A

Ø  Output voltage ripple: 20mV_PP

Ø  High Efficiency 93%

Ø  Overcurrent /short-circuit protection

Ø  Over-temperature protection

Ø  Remote on/off control – Negative or Positive

Ø  Minimal space on PCB:

¨  MQ7280SIP: 2.0 in x 0.5 in x 0.41 in

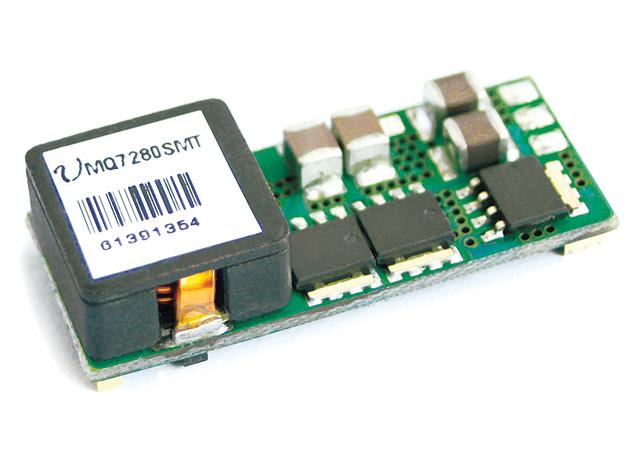

¨  MQ7280SMT: 1.30 in x 0.53 in x 0.43 in

Ø  No derating to +60℃, natural convection

Ø  UL/IEC/EN60950 compliant

Ø  RoHS Compliant available

Ø  High reliability: designed to meet 5 million hour MTBF

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
