  30A/0.7~3.6V Output, 5.5~14V Input, Non-isolated DC-DC Converter

Share: more
  • Product
  • Product Features
  • Applications

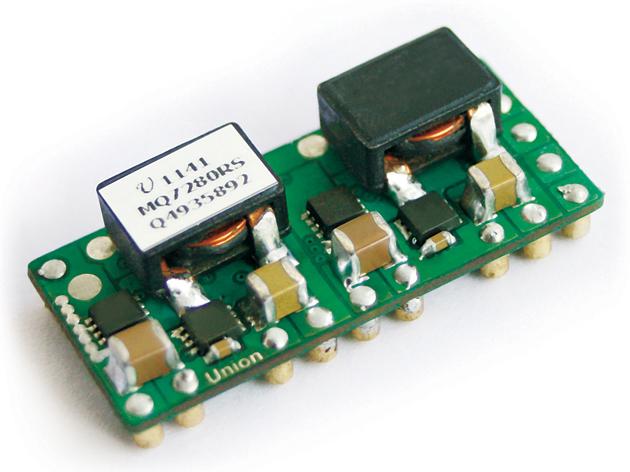

The CompatXTTM MQ7280R Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 5.5Vdc to 14Vdc and provide a precisely (2%) regulated dc output. The output voltage can be set to any value over the range of 0.7V to 3.6V using a single resistor. Such a module is suitable to application with a 8V or 12V power supply bus. The modules have a maximum output current rating of 30A at a typical full-load efficiency over 95%.  The EZ-TrackingTM function  simplifies the sequencing of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.
