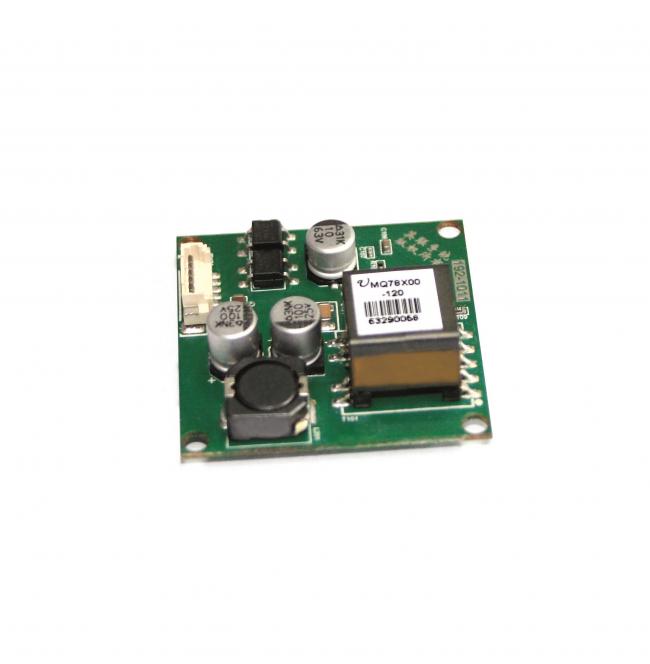

MQ78X00

MQ78X00

36~57VDC input, 5/12V output, compliance with 802.3af,Isolated DC-DC Converter

Share: more
  • Product
  • Product Features
  • Applications
       The POE MQ78X00 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables and the MQ78X00 have two pairs of power inputs pins: - VA1&2 and VB1&2 to accommodate this.

The MQ78X00 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The MQ78X00 is preset to Class 0.

The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection.
