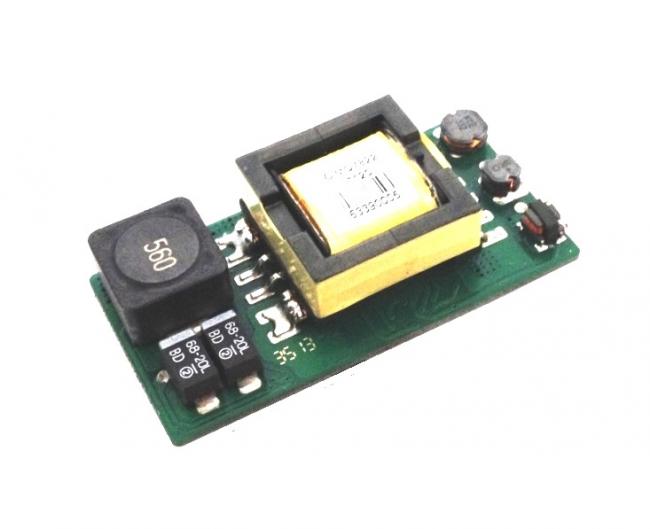

The MQ7822 Power Modules are isolated single dc-dc converter that operate over a wide input voltage range of 36Vdc to72Vdc and provide a precisely (1%) regulated dc output in1”*2”size. Such a module is suitable to application with 48V application. The modules of12V output have a maximum output power 30W with typical efficiency to 90% at full load.

Ø  Wide operating voltage:36~72V

Ø  Single output:

12V/2.5A

5V/6A

3.3V/6A

Ø  Output power up to 30W

Ø  Output current up to 6A

Ø  High Efficiency 92%(12V/2.5A output, 48V input)

Ø  Synchronous Rectifiers Technology

Ø  Frequency dithering for EMI friendly

Ø  Over-current / Short-circuit protection

Ø  Input under-voltage Protection

Ø  Monotonic start-up

Ø  Minimal space on PCB:

50.8mmx25.4mmx 17mm or

2.0inx1.0 inx 0.67in

Ø  Wide Operating Temperature:-40℃~+85℃

Ø  RoHS Compliant available

Ø  Telecommunication

Ø  Data communication

Ø  Distribute Power Architecture
