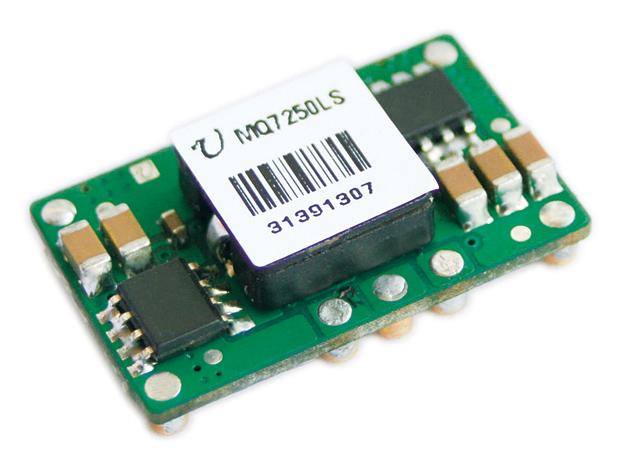

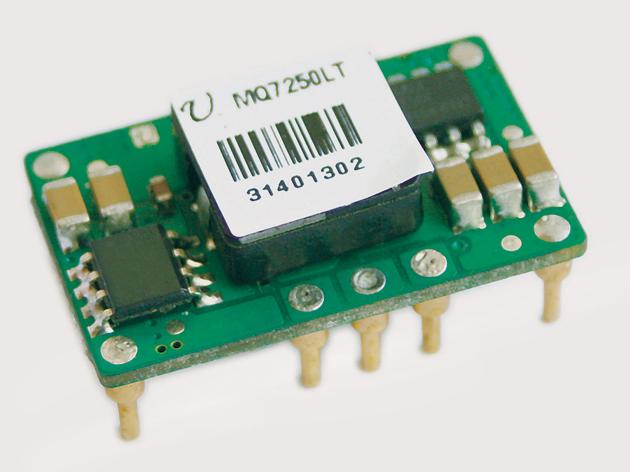

The CompatX^TM MQ7250L Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3Vdc to 14Vdc and provide a precisely (2%) regulated dc output with industry standard TH and SMT pin-out. Such a module is suitable to application with 3.3V, 5V or 12V power supply bus. The modules have a maximum output current rating of 10A at a typical full-load efficiency over 94%.  The  EZ-Tracking^TM of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.

Ø  Wide Operating voltage: 3.0~3.6V/4.5~5.5V/ 10~14V

Ø  Output Current up to 10A

Ø  Wide-Output Voltage: 0.8V~2.5V/0.8~3.6V/ 0.8~1.8V or 1.2~5.5V

Ø  High Efficiency: 94 %

Ø  Output voltage ripple: 30mV_PP

Ø  Overcurrent /shortcircuit protection

Ø  Over-temperature protection

Ø  Remote on/off control - positive logic

Ø  Remote Sense

Ø  High reliability: designed to meet 5 million hour MTBF

Ø  Minimal space on PCB:

       MQ7250L03:  25.40 mm x 15.75mm x 8.7mm or (1.00 in x 0.62 in x 0.34 in )

       MQ7250L05:  25.40 mm x 15.75mm x 8.7mm or (1.00 in x 0.62 in x 0.34 in )

       MQ7250L12:  25.4 mm x 15.75mm x 9.80mm or  (1 in x 0.62 in x 0.39in )

Ø  Sequencing -- EZ-Tracking^TM

Ø  NOperating Temperature: -40℃ to +85℃

Ø  UL/IEC/EN60950 compliant

Ø  RoHS Compliant

¨  Workstations, servers

¨  DSP applications

¨  Distributed power architectures

¨  Telecommunications equipment

¨  Data communications equipment

¨  Wireless communications equipment
