MQ7260L

MQ7260L

 22A、18AOutput0.8~5.5V Output,  3~3.6V/4.5~5.5V/ 10~14V Input,non-isolated DC-DC Converter

Share: more
  • Product
  • Product Features
  • Applications

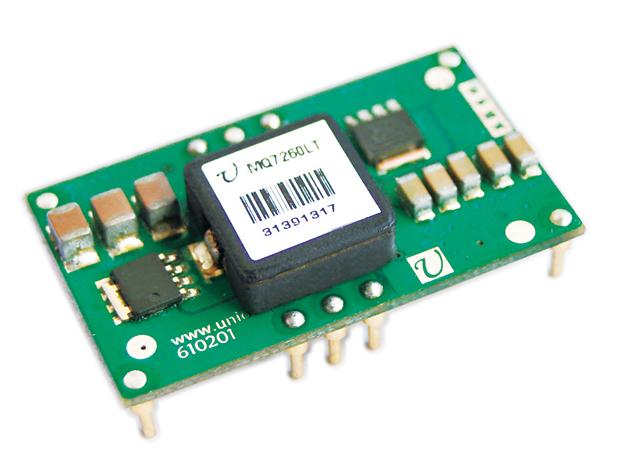

The CompatXTM MQ7260L Series Power Modules are non-isolated dc-dc converters that operate over a wide input voltage range of 3~3.6V, 8V~14Vdc and provide a precisely (2%) regulated dc output with industry standard TH and SMT pin-out. Such a module is suitable to application with  3V, 5V or 12V power supply bus. The modules have a maximum output current rating of 22A at a typical full-load efficiency over 94%.  The EZ-TrackingTM function simplifies the sequencing of supply voltages in power systems by enabling modules to track each other, or any other external voltage, during power up and power down. Standard features include remote on/off with positive logic and output voltage adjustment, over-current protection, over-temperature protection.
